Oxidized is a “RANCID replacement” — a system for automatically extracting, storing, and comparing configuration files from network devices. I have no experience with RANCID or anything else, and I am most certainly not a programmer, so I struggled to follow their instructions. I wrote up my notes in case they’re helpful to anyone else.
I did this on CentOS 7 following their installation instructions. I wanted things simple — no git repo, no docker, no sql databases. Just read from a list of switches and dump their configs to a directory.
1. yum install cmake sqlite-devel openssl-devel libssh2-devel ruby gcc ruby-devel
2. gem install oxidized
3. gem install oxidized-script oxidized-web
4. useradd oxidized
5. su - oxidized
6. Run oxidized with no args. This creates a /home/oxidized/.config/oxidized/ directory with a sample config in it.
6.5 mkdir /home/oxidized/deviceconfigs to store the configs it will download.
7. Edit /home/oxidized/.config/oxidized/config as per the following (I added the //comments here, not sure how to properly comment within the config file itself.)
// Our environment is mostly ProCurve switches.
// We use the same username (manager) and
// same password (f00bar) on all of them.
// Global defaults. Can be overridden on a per-device basis
// by specifying different model, username, or password in router.db.
username: manager
password: f00bar
model: procurve
// How often it grabs the configs, in seconds
interval: 600
// Other defaults
log: ~/.config/oxidized/log
use_syslog: false
debug: false
threads: 30
timeout: 20
retries: 3
prompt: !ruby/regexp /^([\w.@-]+[#>]\s?)$/
pid: /home/oxidized/.config/oxidized/pid
// Procurve gear doesn't need the "enable" pwd
// because we ssh in directly as manager, but this is
// where we'd specify it.
vars:
enable: v3ry5ecur3
// This removes/obscures cleartext passwords
// before saving the config.
remove_secret: true
// IP and port for http listener (view all nodes, download, etc.)
// Set to zeroes to bind to all IP addresses,
// and I needed to change the default port.
rest: 0.0.0.0:8787
// No idea how to use this yet, I think we're
// a small enough environment that who cares.
groups: {}
input:
// Try ssh first, telnet second.
default: ssh, telnet
debug: false
ssh:
// I think this means, don't care about ssh key warnings.
secure: false
output:
default: file
file:
directory: /home/oxidized/deviceconfigs
source:
default: csv
// Format:
// hostname:modelname:username:password:enablepassword
// sw-edge3.example.org:procurve:manager:s3cr3t:SuP3rSecr3t
// Only name (hostname) and model are required, the other things
// will use global values from this config file if left blank.
csv:
file: /home/oxidized/.config/oxidized/router.db
delimiter: !ruby/regexp /:/
// Tell it which field is which in the csv.
map:
name: 0
model: 1
username: 2
password: 3
vars_map:
enable: 4
model_map:
// I *think* that this just lets you write "cisco"
// when you MEAN "ios", but I dunno.
cisco: ios
juniper: junos
8. Run firewall-cmd --permanent --zone=public --add-port=8787/tcp followed by firewall-cmd —reload to let me view the webpage. I’m including this stupid step because I ALWAYS forget to do it, and waste time trying to figure out why [thing] doesn’t work.
9. Create /home/oxidized/.config/oxidized/router.db and make it look something like this:
sw-edge1.example.org
sw-edge2.example.org
sw-edge3.example.org
sw-edge4.example.org
sw-edge5.example.org
sw-edge6.example.org
2920stack.example.org
sw-core.example.org

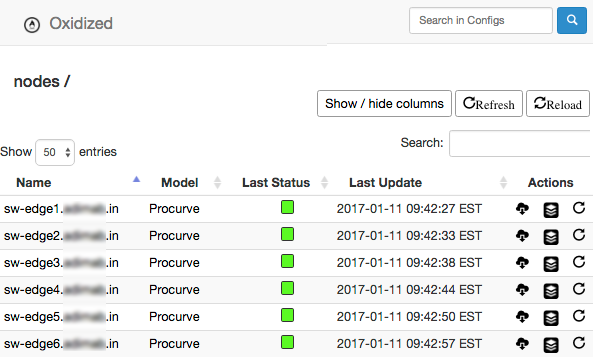

10: Run oxidized again (no args) and browse to
http://youroxidizedhost.example.org:8787
and you should see a list of nodes (devices). Wait a few seconds/minutes to give it a chance to fetch the configs.
The Actions buttons are, left to right: View config, compare versions, and update now.
If we had one switch with a different set of credentials, we’d add it to router.db like this:
specialsw.example.org:procurve:manager:differentpassword
If we had one Cisco switch amidst all the Procurves, we’d do something like
ciscosw.example.org:cisco:admin:loginpassword:enablepassword
Here’s another reference which helped, mainly for his config file diffs (I don’t use Docker):
https://log.cyconet.org/2016/01/29/oxidized-silly-attempt-at-really-awesome-new-cisco-config-differ/
TODO:
- Daemonize oxidized so it starts automatically when the server restarts
- Set up some kind of alerting for if a node is unreachable, or if a config has changed. I’m sure this is easy to accomplish IF you understand all their references to RESTful APIs and stuff, but I so totally don’t.
- integrate with LibreNMS somehow???? Well, that was actually kinda stupidly easy:

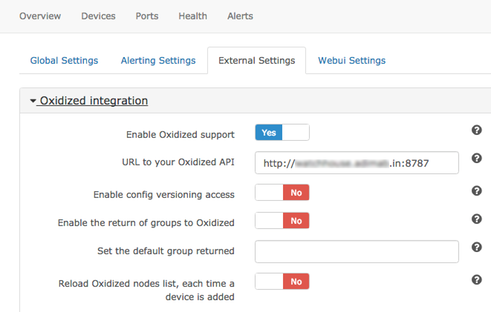

In LibreNMS, go to gear icon -> Global Settings -> External Settings and plug in the URL to Oxidized:

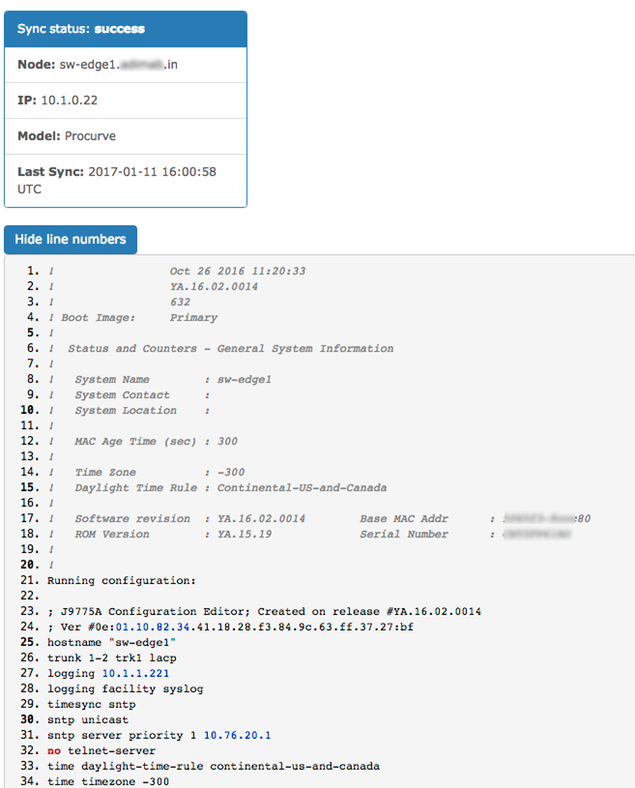

Then, go to LibreNMS’s Devices view, find one of the switches, and click Config. If all is well, it should look something like this:
If it throws an error, make sure that the device’s name in LibreNMS EXACTLY matches the device’s name in Oxidized. I got tripped up because in LibreNMS things were just “sw-edge1” but in Oxidized they were “sw-edge1.example.org”, oops. Use LibreNMS’s rename.php to fix that:
cd /opt/librenms
./renamehost.php sw-edge3 sw-edge3.example.org
(With help from http://docs.librenms.org/Extensions/Oxidized/ AND especially https://www.reddit.com/r/networking/comments/5cw9op/oxidized_or_rancid_vs_other_for_config_backup/
